M12 Waterproof Metal M8 Module Connector for LED Lighting
M12 waterproof connector detatils:
• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light,
LED Belt Light, Curtain Light, Twinkle Light and so on.
• Protect from dust and water during immersion, resistant to many oils and chemicals.
• Easily connected to proximity switch, flow monitoring devices and field bus components s
ensor devices and actuator devices.
• Ip67 Ip68 dc connector for led light meets all the requirements of sensor devices and
actuator devices for automation application.
• 100% new material, high-quality parts, strictly QC standard according to international customers.

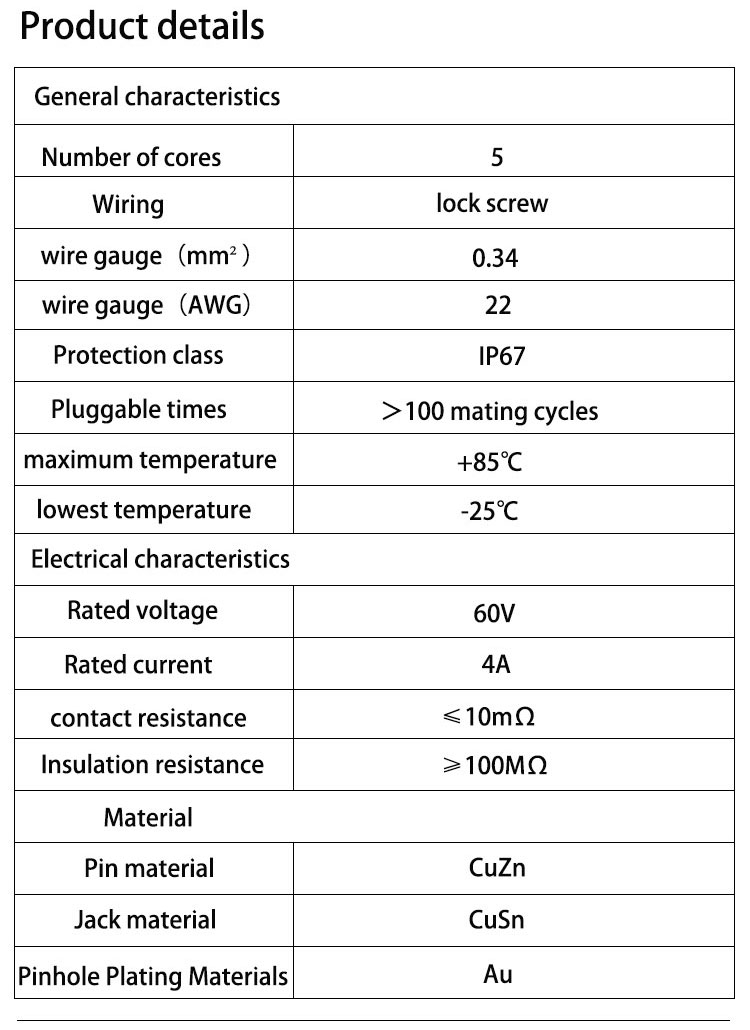

| Model NO. | M12 waterproof connector |
| Surface Treatment | Gold Plating |
| Warranty | Two Years |
| Material | PVC/Rubber/Nylon |
| Color | Black White |
| Transport Package | PE Bag/Carton or According Customize Packing |
| Trademark | Bett |
| HS Code | 8536909000 |
| Contact Material | Brass |
| Housing | Copper Alloy |
| IP Rating | IP65/IP66/IP67/IP68/IP69 |
| Cable Length | Per Your Requirement |
| Temperature Range | -20~+85 |
| Specification | 55*30*30 / 38*28*20 |
| Origin | China |
| Production Capacity | 12000pieces/Week |
| M12 waterproof connector Material | Pin contant: CuZn
Socket contact: CuSn
Contact plating: Au
Cable Material: PVC/PUR |
| Electrical Performance | Rated voltage: 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
Rated current: 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
Insulation resistance: ≥100 MΩ
Contact resistance: Standard: IEC 61076-2-101 |
| Mechanical Performance | Coupling method: threaded connection
Direction: Straight/Angled
Mechanical operation: >500 mating cycles |
| Environmental Performance | Temperature range: -25°C ~ + 85°C
Protection degree: IP67/IP68 |

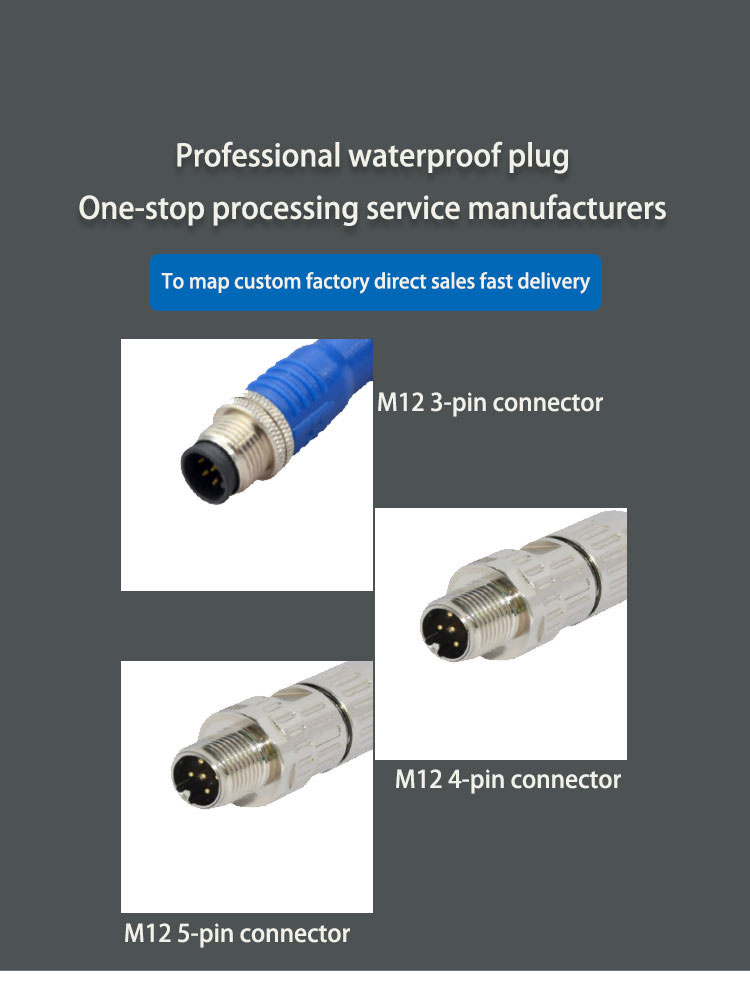

M12 waterproof connectorDescription of 3~5 Pole Connector
Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, it will be a perfet option. it is widely used in many application.
| Operation Parameters |
| Voltage Rating | 300VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 10mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
M12 waterproof connector Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
M12 waterproof connector Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
M12 waterproof connector Applicaiton of Bett M19 Connectors
- Communications Application
- product coding machines
- Electric power equipment
- Communications equipment
M12 waterproof connector Packaging & Delivery
| Packing | 1.plastic
2.carton
3.as the requirement of per custom |
| Port | Shenzhen |
| Lead time -
| 7-15 working days |
M12 waterproof connector FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.
4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

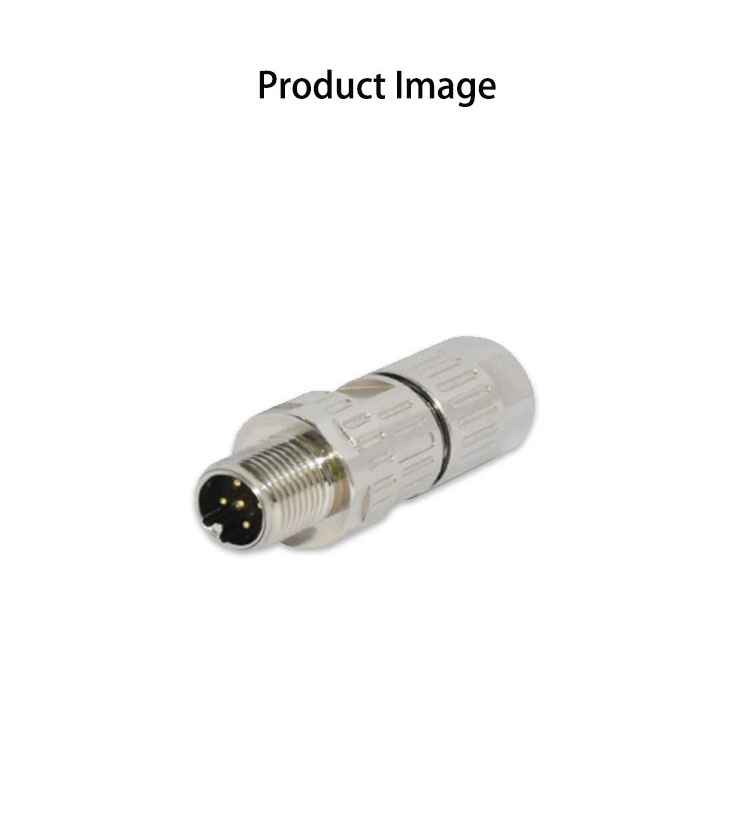

M12 waterproof connectorProduct Display
