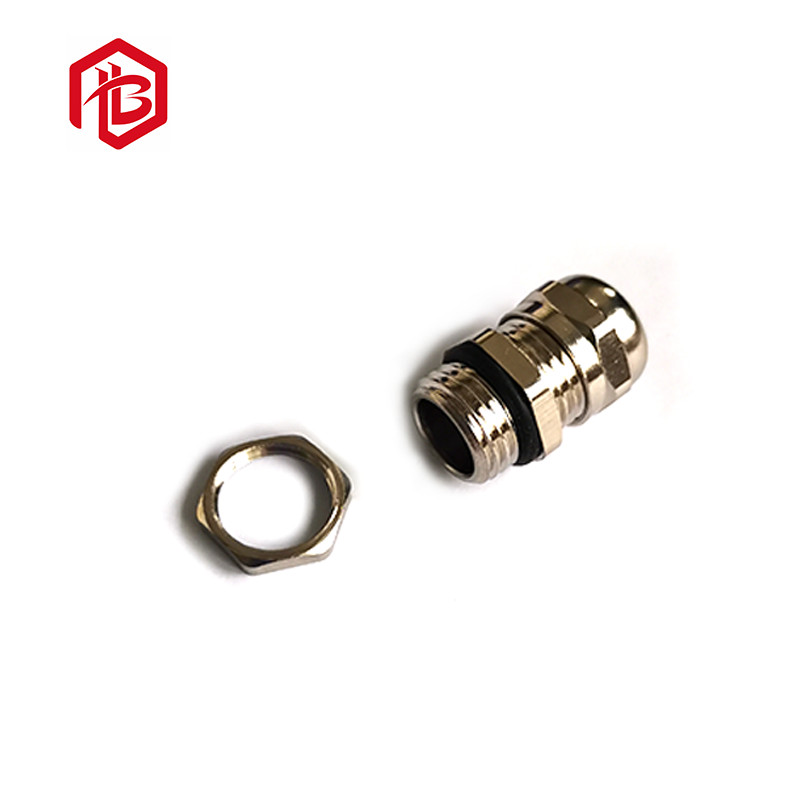

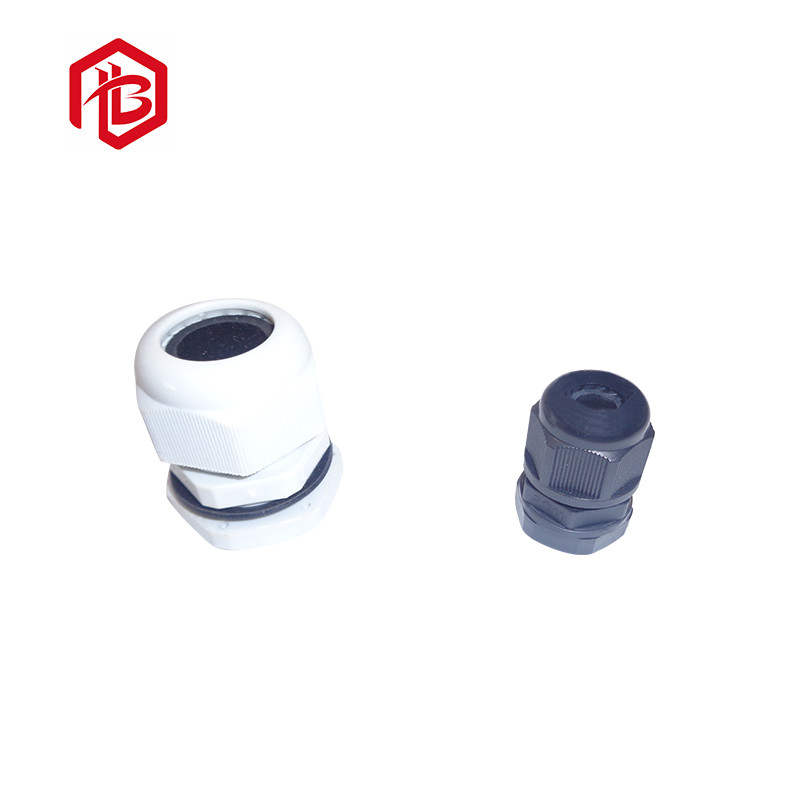

PG7 PG9 PG11 PG13.5 PG21 Cable Joint Size Nylon Waterproof Plastic Sealed Connector
Electrical Spec :
1. Rated Current:1-30A
2. Withstand Voltage:500V AC ,60S
3. Shielding:>75dB at 10Mhz;>40dB at 1 Ghz (IEC60169-1-3)
4. Rated Temperature:-60degree,+220degree
5. Corrosion Resistance:Salt spray test,>144h (IEC60512-6,11f)
6. Humidity:60degree,95% Min
7. Ingress protection:IP66~IP68
M12 connector descriptions:
• The M12 circular connector we produced conform to international standard IEC61076-2-101 with M12*1.0 screw locking.
• Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical
• M12 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A, B, D, coding, for both screw-locking and quick-locking system.
Electrical Data:
Rated current: 4A / 2A / 1.5A
Rated voltag: 250V / 60V / 30V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ
Connector Specification:
Gender: Male / Female
Insert: PA66+GF Contacts: Brass / Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Degree of protection: IP67 in locked condition
Wire Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Temperature range: -25°C ~ +90°C
Q&A
1. Q: What type waterproof connector do you have?
A: We have 17 series type waterproof connector,and make more than 3000types waterproof connector cable. Most of our connector is customized. We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
Tips
1. Proofing: Customers provide samples or provide specifications, and we will make samples according to your samples for confirmation.
2. Production: Our sample production - the customer confirms that the sample is passed - the customer places an order - our company arranges production
3. Delivery: The normal delivery time is 5 to 10 days as agreed by both parties.
4. After-sales: If there is any quality or any other problem with the product, please give us feedback in time, and we will deal with it in time and serve you sincerely.
5. All products are customized according to customer requirements, quality assurance, samples are welcome to be customized.
Product display
